BENEFITS
Full backward compatibility with Thermo Scientific AMS-4 Radial Detector; Plug and Play legacy head functionality
Plug and Play
Seamless compatibility with legacy hardware. An RS-485 Serial connection allows for seamless integration to existing ASM4 CAM detector heads.
Reduced Downtime
Charthouse SMART Radial Detector Heads store calibration data. Allows inter-operability (hot swap capability) between detector heads for easy
in-field detector head replacement.
Large 7” Display
High visibility display that provides monitor data/ readings, alarm parameters, and system configuration parameters.
Minimal Procedural Changes
Innovative design allows for a seamless transition with minimal operation, calibration, and troubleshooting procedural changes.
Data Logging
View measurement trends on histogram charts. Enhanced data storage allows for more measurement data over longer periods of time.
Dose-Rate Readings
Additional display of local gamma area dose rates (mR/hr readout).
Optional Integrated Wireless Connectivity
RPC-1000 offers on-board WIFI and 900 MHz remote monitoring capability; wireless connectivity interfaces with 3rd part monitoring software systems such as Remote SNA, Thermo ViewPoint, Barlett RMS, etc. via wireless encryption.
Wireless Encryption ensures secure data transmission.
Internal Relays
Control external devices or notifications to hardware monitoring systems.
Integrated pump control switch; allows for direct power supply for vacuum pump
Enhanced Audible and Visual Alarm Capability
Adjustable dual alarm setpoints for DAC, DAC hr, or dose rate. Adjustable 102 dB(A) siren and high-intensity LED strobe can be acknowledged locally or remotely.

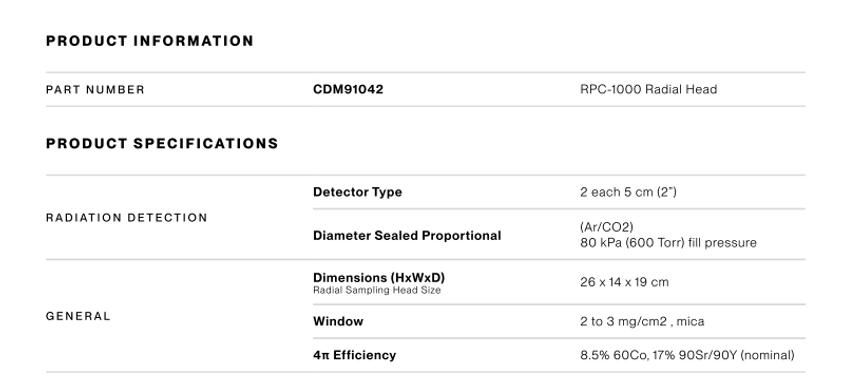

Radial Detector Head
for RPC-1000

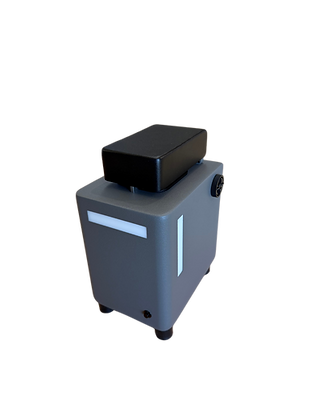

The RPC-1000 Radial Head is a fully compatible beta particulate aerosol detector designed to be used in conjunction with the Charthouse RPC-1000 Controller Unit. The instrument has been developed to match the operating characteristics of the Thermo Scientific™ AMS-4 Radial Detector Head while delivering enhanced modern day design improvements and features.
Core Capabilities
-
Direct replacement for Thermo Scientific™ AMS-4 Radial Head
-
Highly visible LED alarm Indicators on all 4 sides
-
Adjustable audible alarm
-
Gamma area monitor functionality
-
Easy opening lid allows for quick and easy filter paper replacement
Key Benefits
-
Equivalent functionality and performance as compared to legacy Thermo Scientific™ AMS 4 Radial Head results in straight forward program implementation (minimum changes/training required)
-
SMART memory board addition results in detector head’s ability to retain key calibration parameters; removes requirement to calibrate in pair with corresponding meter electronics unit
-
Adjustable cable length connection for remote sampling
-
Enhanced design features as compared to legacy AMS 4 Radial Head
-
Improved opening/closing of detector filter paper compartment
-
Improved safety performance due to enhanced visual and audible features
